Tiered Storage Configuration for Service Grid

Initial Load

The initial loading of data into each tier can be a time-consuming process, starting with the System of Record or other external data sources. Additionally, data in both tiers can be updated during the normal course of operations during the day.

During the normal use of Tiered Storage, priority data is stored in the Hot tier, and other data (except transient) is stored in the Warm tierClosed Part of GigaSpaces Tiered Storage Mechanism. Warm tier is SSD (recommended media) storage which is mostly used for data that is read-only and is less frequently used.. If there is data in the Warm tier, it will be faster to recover it rather than recovering it from an external database.

Using data persistency, data in both tiers is stored in a system repository. When the data is undeployed, the user has an option to persist the data. Subsequent redeployment of the data is performed at optimum speed.

Log: Source of Data

In the primary SpaceClosed Where GigaSpaces data is stored. It is the logical cache that holds data objects in memory and might also hold them in layered in tiering. Data is hosted from multiple SoRs, consolidated as a unified data model. log:

Recovery from tier layer

Data source recovery

Entries found in warm tier:

Entries inserted to hot tier:

Total Time:

This data can be compared with primary log of the initial run Recovery from external data source:

Entries found in data source

Entries inserted to Space:

Entries ignored:

Total Time:

Transient Objects

  • Transient objects are not kept in SQLite but can still be mirrored to an external source.

    • In this case, after undeploy+deploy, the transient objects will not be in the Space.

  • If it is required to load from an external source, delete pu metadata & data.

Tiered Storage Configuration for Space Types

Registering a Space Type with Tiered Storage Configuration

In the Java example below, take note of the highlighted section.

SpaceTypeDescriptor typeDescriptorDoc1 =
   new SpaceTypeDescriptorBuilder("SpaceTypeExample")
	.addFixedProperty("id", Integer.class)
	.addFixedProperty("field1", String.class)
	.addFixedProperty("field2", String.class)
	.addFixedProperty("field3", String.class)
	.addFixedProperty("expireDate", LocalDateTime.class)
	.idProperty("id")
	.supportsDynamicProperties(false)
	.setTieredStorageTableConfig(
		new TieredStorageTableConfig()
			>.setName("SpaceTypeExample")// set to space type name
			>.setCriteria("field1='1'")// see examples below
	)
	.create()

Tiered Storage Policies in Type Registration

Example Hot/Warm Tiers Distribution
new TieredStorageTableConfig() .setName("SpaceTypeExample") .setCriteria("field1='1'") Note: Supported operators: = != >= <= and or

Criteria-Based

Hot TierClosed Part of GigaSpaces Tiered Storage Mechanism. Hot Tier is RAM and is used for priority data and read/write operations that require the fasted access Matching provided criteria
Warm Tier All
new TieredStorageTableConfig() .setName("SpaceTypeExample") .setTimeColumn("expireDate") .setPeriod(Duration.ofMinutes(60))

Time-Based

Hot Tier Matching condition expireDate+60min<now
Warm Tier All

Note: Only the initial value of the expireDate column will define Hot Tier retention of an object.

new TieredStorageTableConfig() .setName("SpaceTypeExample") .setTransient(true)

Memory Only

Hot Tier All
Warm Tier None
null (*) or no call to: .setTieredStorageTableConfi

Warm Tier Only

Hot Tier None
Warm Tier All
new TieredStorageTableConfig() .setName("SpaceTypeExample") .setCriteria("all")

Hot and Warm

Hot Tier All
Warm Tier All

Underploy-Deploy

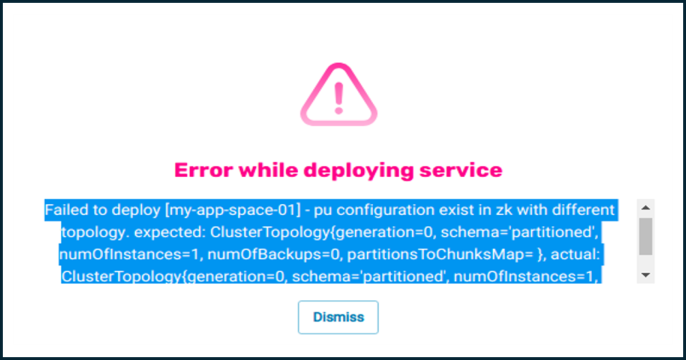

In the case of deploying using a different topology:

The Undeployed Processing Units (PUs)

The undeployed services can be viewed using the GET /pus/undeployed REST APIClosed REpresentational State Transfer. Application Programming Interface An API, or application programming interface, is a set of rules that define how applications or devices can connect to and communicate with each other. A REST API is an API that conforms to the design principles of the REST, or representational state transfer architectural style..

An example of sample output is shown below.

 [
				{
				"name": "space-10-SNAPSHOT",
				"unDeployedAt": "2021-08-03T12:18:25.437",
				"isPersistent": true,
				"gracefulShutdown": true,
				"lastPrimaries": [
				{
				"partitionId": 1,
				"insatnceId": "1_1"
				}
				],
				"spaceInstancesHosts": [
				{
				"instanceId": "1_0",
				"host": "127.0.1.1"
				},
				{
				"instanceId": "1_1",
				"host": "127.0.1.1"
				}
				],
				"schema": "partitioned",
				"numOfInstances": 1,
				"backupsPerPartition": 1
				}

Deleting Previous Data and Metadata

Safe Undeploy: Ensure all Data in Disk is Updated

Added options to undeploy: DrainMode and DrainTimeout

  • NONE - make no attempt to wait for all data to be drained before shutting down

  • REQUIRED - make an attempt to wait for all data to be drained before shutting down,

  • shutdown even if drain wasn't completed before drainTimeout

  • ATTEMPT - make an attempt to wait for all data to be drained before shutting down,

  • shutdown will not occur if drain wasn't completed before drainTimeout

Admin API:

pu.undeployAsync(new UndeployOptions(DrainMode.ATTEMPT,60000L));

CLI:

./gs.sh service undeploy --drain-mode=ATTEMPT --drain-timeout=60000ms test.

If drain was not completed with mode attempt, the PU will be at quiesce status.

Even if undeploy did not drain all, data is considered as consistent and will recover from disk in the case where it is not empty. The same goes for failover with async replication.

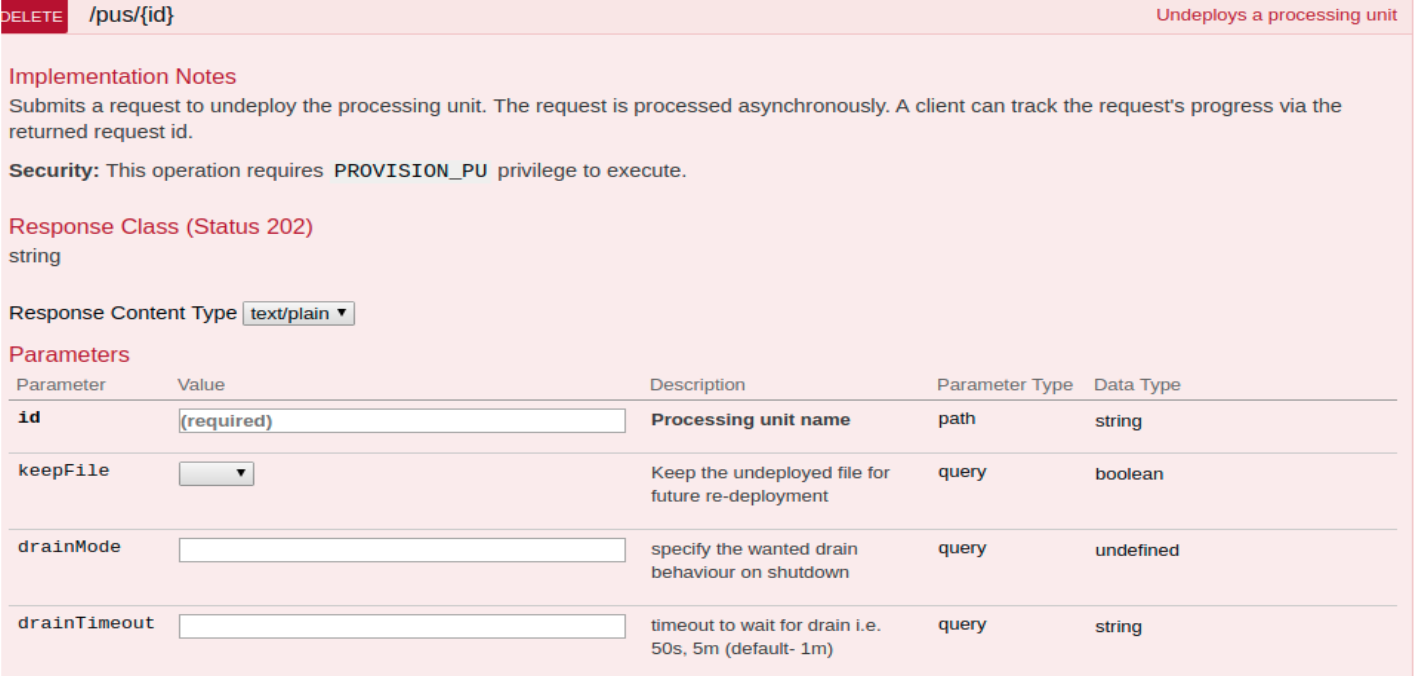

Undeploy - REST

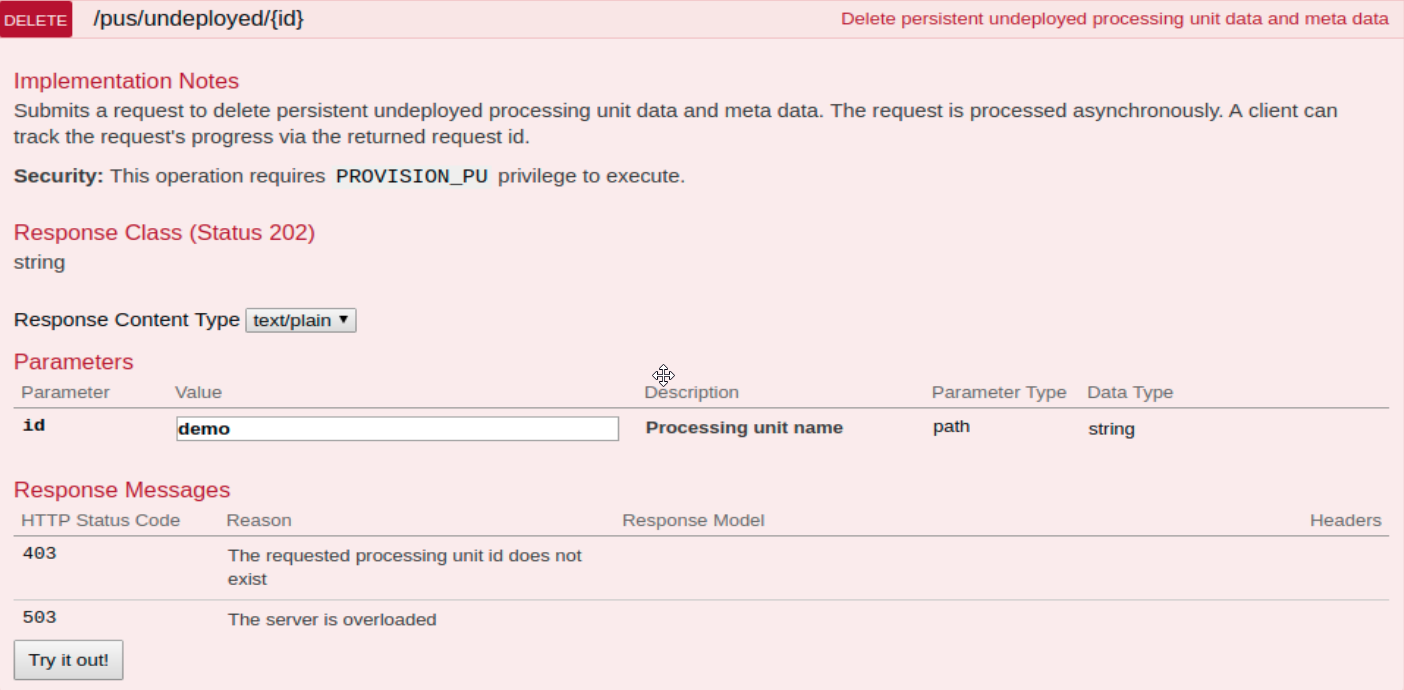

The data of undeployed services can be deleted using the DELETE /pus/undeployed/{id} RESTClosed REpresentational State Transfer. Application Programming Interface An API, or application programming interface, is a set of rules that define how applications or devices can connect to and communicate with each other. A REST API is an API that conforms to the design principles of the REST, or representational state transfer architectural style. API.

Limitations and Recommendations

Supported Not Supported
