XAP

Viewing Container Information

To view the general container details:

List all containers

Command:

gs.{sh/bat} container list

Description:

This command lists all the containers on the current host.

Input Example:

<GS_HOME>/bin/gs container list

<GS_HOME>/bin/gs.sh container list

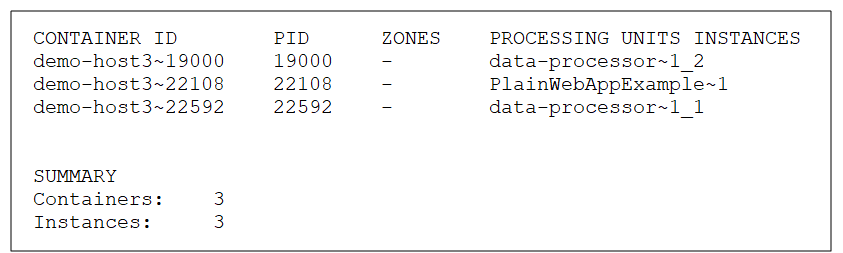

Output Example:

Parameters and Options:

None

List container details

Command:

gs.{sh/bat} container info <container ID>

Description:

This command lists the container ID, Process ID, zones, and Processing Unit instances for the specified container.

Input Example:

<GS_HOME>/bin/gs container info demo-host3~22592
<GS_HOME>/bin/gs.sh container info demo-host3~22592

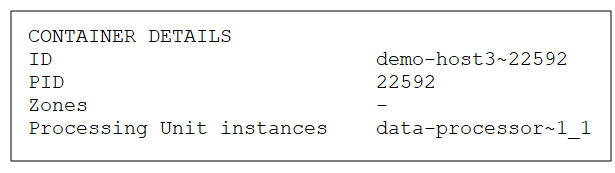

Output Example:

Parameters and Options:

Item Name Description
Parameter Container ID Provide the ID of container for which you want to see the details.

List all containers

Path

GET /containers

Description:

This option lists all the containers in the Processing Unit instances.

Example Request:

curl -X GET --header 'Accept: application/json' 'http://localhost:8090/v2/containers'

Example Response:

[
  {
    "id": "admin~13972",
    "pid": 13972,
    "zones": [],
    "instances": [
      "alertSpace~1",
      "monitorSpace~1"
    ]
  }
]

Options:

None.

List container details

Path

GET /containers{id}

Description:

This option lists the container ID, Process ID, zones, and Processing Unit instances for the specified container.

Example Request:

curl -X GET --header 'Accept: application/json' 'http://localhost:8090/v2/containers/admin~13972'

Example Response:

{
  "id": "admin~13972",
  "pid": 13972,
  "zones": [],
  "instances": [
    "alertSpace~1",
    "monitorSpace~1"
  ]
}

Options:

Option Description Required
containerId Provide the ID of the Processing Unit instance for which you want to see the container details. Yes

List JVM details for a specific container

Path

GET /containers{id}/details/jvm

Description:

This option lists the JVM details for the specified container.

Example Request:

curl -X GET --header 'Accept: application/json' 'http://localhost:8090/v2/containers/admin~13972/details/jvm'

Example Response:

{
  "startTime": 1521364936818,
  "jmxUrl": "service:jmx:rmi:///jndi/rmi://admin:10101/jmxrmi",
  "vmName": "Java HotSpot(TM) 64-Bit Server VM",
  "vmVersion": "1.8.0_45",
  "vmVendor": "Oracle Corporation",
  "pid": 13972,
  "inputArguments": [
    "-XX:+AggressiveOpts",
    "-XX:+HeapDumpOnOutOfMemoryError",
    "-Xms512m",
    "-Xmx512m",
    "-DagentId=3",
    "-DgsaServiceID=a22de474-c56a-4331-a068-356d14bd69df",
    "-DenableDynamicLocators=",
    "-Djava.util.logging.config.file=C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\config\\log\\xap_logging.properties",
    "-Djava.security.policy=C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\policy\\policy.all",
    "-Djava.rmi.server.hostname=ADMIN",
    "-Dcom.gs.home=C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924"
  ],
  "bootClassPath": "C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\resources.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\rt.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\sunrsasign.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\jsse.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\jce.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\charsets.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\jfr.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\classes",
  "classPath": ";C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924;C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\optional\\sigar\\sigar.jar;;C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\required\\xap-common.jar;C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\platform\\service-grid\\xap-service-grid-boot.jar;",
  "memoryHeapInitInBytes": 536870912,
  "memoryHeapMaxInBytes": 514850816,
  "memoryNonHeapInitInBytes": 2555904,
  "memoryNonHeapMaxInBytes": -1,
  "systemProperties": {
    "com.gigaspaces.grid.gsc.home": "C:\\Users\\hp\\.gigaspaces",
    "java.io.tmpdir": "C:\\Users\\hp\\AppData\\Local\\Temp\\",
    "com.gs.jini_lus.groups": "xap-12.3.0",
    "line.separator": "\r\n",
    "com.j_spaces.core.container.shutdown_hook": "false",
    "agentId": "3",
    "path.separator": ";",
    "sun.management.compiler": "HotSpot 64-Bit Tiered Compilers",
    "sun.cpu.endian": "little",
    "user.script": "",
    "java.specification.version": "1.8",
    "java.vm.specification.name": "Java Virtual Machine Specification",
    "com.gs.manager.rest.url": "http://localhost:8090",
    "java.vendor": "Oracle Corporation",
    "java.vm.specification.version": "1.8",
    "user.home": "C:\\Users\\hp",
    "file.encoding.pkg": "sun.io",
    "com.gigaspaces.grid.groups": "gs-grid",
    "sun.arch.data.model": "64",
    "sun.boot.library.path": "C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\bin",
    "user.dir": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\bin",
    "com.gigaspaces.lib.platform": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\platform\\",
    "com.gs.embedded-services.httpd.enabled": "false",
    "com.gigaspaces.lib.opt": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\optional\\",
    "java.library.path": "C:\\Program Files\\Java\\jdk1.8.0_45\\bin;C:\\Windows\\Sun\\Java\\bin;C:\\Windows\\system32;C:\\Windows;C:\\oracle\\product\\11.1.0\\db_1\\bin;C:\\Program Files\\SlikSvn\\bin;C:\\Program Files\\Java\\jdk1.8.0_45\\bin;C:\\Windows\\system32;C:\\Windows;C:\\Windows\\System32\\Wbem;C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\;c:\\tools\\hugo;C:\\Program Files (x86)\\Git\\cmd;C:\\Program Files (x86)\\Microsoft SQL Server\\100\\Tools\\Binn\\;C:\\Program Files (x86)\\Microsoft SQL Server\\100\\DTS\\Binn\\;C:\\tools\\hugo;C:\\tools\\apache-maven-3.5.0\\bin;C:\\Program Files (x86)\\AdminStudio\\2015\\Common\\;C:\\Program Files\\TortoiseSVN\\bin;C:\\Program Files\\SlikSvn\\bin;C:\\Program Files (x86)\\QuickTime\\QTSystem\\;C:\\Windows\\system32\\config\\systemprofile\\.dnx\\bin;C:\\Program Files\\Microsoft DNX\\Dnvm\\;C:\\Program Files\\MIT\\Kerberos\\bin;C:\\Program Files (x86)\\Skype\\Phone\\;C:\\Program Files\\Microsoft SQL Server\\Client SDK\\ODBC\\130\\Tools\\Binn\\;C:\\Program Files (x86)\\Microsoft SQL Server\\130\\Tools\\Binn\\;C:\\Program Files\\Microsoft SQL Server\\130\\Tools\\Binn\\;C:\\Program Files\\Microsoft SQL Server\\130\\DTS\\Binn\\;C:\\Program Files\\PuTTY\\;C:\\Users\\hp\\AppData\\Local\\GitHubDesktop\\bin;C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\platform\\native;C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\platform\\native;.",
    "sun.cpu.isalist": "amd64",
    "sun.desktop": "windows",
    "com.gigaspaces.lib.opt.security": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\optional\\security",
    "os.arch": "amd64",
    "java.vm.version": "25.45-b02",
    "com.gs.jmx.enabled": "true",
    "java.endorsed.dirs": "C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\endorsed",
    "java.runtime.version": "1.8.0_45-b15",
    "java.util.logging.config.file": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\config\\log\\xap_logging.properties",
    "java.vm.info": "mixed mode",
    "java.ext.dirs": "C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\ext;C:\\Windows\\Sun\\Java\\lib\\ext",
    "user.variant": "",
    "java.runtime.name": "Java(TM) SE Runtime Environment",
    "file.separator": "\\",
    "com.gigaspaces.lookupfinder.actualclose": "false",
    "java.class.version": "52.0",
    "com.gigaspaces.system.registryPort": "10101",
    "java.specification.name": "Java Platform API Specification",
    "sun.boot.class.path": "C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\resources.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\rt.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\sunrsasign.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\jsse.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\jce.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\charsets.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\lib\\jfr.jar;C:\\Program Files\\Java\\jdk1.8.0_45\\jre\\classes",
    "file.encoding": "Cp1252",
    "sun.rmi.dgc.client.gcInterval": "36000000",
    "com.gigaspaces.system.jmxServiceURL": "service:jmx:rmi:///jndi/rmi://admin:10101/jmxrmi",
    "user.timezone": "Africa/Harare",
    "sun.rmi.dgc.server.gcInterval": "36000000",
    "com.gs.work": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\work",
    "java.specification.vendor": "Oracle Corporation",
    "sun.java.launcher": "SUN_STANDARD",
    "os.version": "6.3",
    "sun.os.patch.level": "",
    "java.vm.specification.vendor": "Oracle Corporation",
    "com.gigaspaces.gsc.running": "true",
    "user.country": "GB",
    "sun.jnu.encoding": "Cp1252",
    "com.gs.deploy": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\deploy",
    "com.gigaspaces.lib": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\",
    "com.gs.jini_lus.locators": "localhost",
    "com.gs.jmx.createJmxConnetor": "false",
    "user.language": "en",
    "com.gs.start-embedded-lus": "false",
    "enableDynamicLocators": "",
    "spark.home": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\insightedge\\spark",
    "java.vendor.url": "http://java.oracle.com/",
    "java.rmi.server.hostname": "admin",
    "java.awt.printerjob": "sun.awt.windows.WPrinterJob",
    "com.gs.home.fwd-slash": "C:/GigaSpaces/gigaspaces-insightedge-12.3.0-rc2-b18924",
    "java.awt.graphicsenv": "sun.awt.Win32GraphicsEnvironment",
    "com.gs.home": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\",
    "awt.toolkit": "sun.awt.windows.WToolkit",
    "com.gs.localhost.name": "admin",
    "java.class.path": ";C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924;C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\optional\\sigar\\sigar.jar;;C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\required\\xap-common.jar;C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\platform\\service-grid\\xap-service-grid-boot.jar;",
    "gsaServiceID": "a22de474-c56a-4331-a068-356d14bd69df",
    "java.protocol.handler.pkgs": "net.jini.url",
    "os.name": "Windows 8.1",
    "com.gigaspaces.lib.required": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\required\\",
    "java.security.policy": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\policy\\policy.all",
    "java.vm.vendor": "Oracle Corporation",
    "com.gs.licensekey": "Product=InsightEdge;Version=12.3;Type=ENTERPRISE;Customer=evaluation;Expiration=2018-Apr-03;Hash=SP3QPJPWOORObPL6VQNO",
    "gs.logFileName": "gsc_3",
    "java.vendor.url.bug": "http://bugreport.sun.com/bugreport/",
    "user.name": "hp",
    "org.jini.rio.home": "C:\\Users\\hp\\.gigaspaces",
    "org.jini.rio.qos.native": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\lib\\platform\\native",
    "java.vm.name": "Java HotSpot(TM) 64-Bit Server VM",
    "sun.java.command": "com.gigaspaces.start.SystemBoot services=GSC",
    "java.home": "C:\\Program Files\\Java\\jdk1.8.0_45\\jre",
    "java.version": "1.8.0_45",
    "sun.io.unicode.encoding": "UnicodeLittle"
  },
  "environmentVariables": {
    "GS_GSA_OPTIONS": "-Xmx512m",
    "GS_CLI_OPTIONS": "-Xmx512m",
    "GS_GSM_OPTIONS": "-Xmx512m",

    "GS_MANAGER_OPTIONS": "-Xmx512m",
    "GS_SECURITY_POLICY": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\policy\\policy.all",
    "GS_LOGS_CONFIG_FILE": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\config\\log\\xap_logging.properties",
    "GS_COMPONENT_OPTIONS": "-Xms512m -Xmx512m",
    "GS_GUI_OPTIONS": "-Xmx512m",
    "GS_GSC_OPTIONS": "-Xms512m -Xmx512m",
    "GS_LUS_OPTIONS": "-Xmx512m",
    "GS_HOME": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924",
    "GS_SETTINGS_FILE": "C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\bin\\\\setenv-overrides.bat",
    "GS_NIC_ADDRESS": "ADMIN",
    "GS_MANAGER_SERVERS": "localhost",
    "GS_OPTIONS": "-Djava.util.logging.config.file=\"C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\config\\log\\xap_logging.properties\" -Djava.security.policy=\"C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\\policy\\policy.all\" -Djava.rmi.server.hostname=\"ADMIN\" -Dcom.gs.home=\"C:\\GigaSpaces\\gigaspaces-insightedge-12.3.0-rc2-b18924\"",
    "GS_WEBUI_OPTIONS": "-Xmx512m"
  }
}

Options:

Option Description Required
containerId Provide the ID of the container for which you want to see the JVM details. Yes

List transport details for a specific container

Path

GET /containers{id}/details/transport

Description:

This option lists transport details, such as port and thread information, for the specified container.

Example Request:

curl -X GET --header 'Accept: application/json' 'http://localhost:8090/v2/containers/admin~13972/details/transport'

Example Response:

{
  "hostAddress": "172.20.3.93",
  "hostName": "admin",
  "bindHost": "admin",
  "port": 51469,
  "minThreads": 1,
  "maxThreads": 128,
  "isSslEnabled": false
}

Options:

Option Description Required
containerId Provide the ID of the container for which you want to see the transport details. Yes

List JVM statistics for a specific container

Path

GET /containers{id}/statistcis/jvm

Description:

This option lists the JVM statistics for the specified container.

Example Request:

curl -X GET --header 'Accept: application/json' 'http://localhost:8090/v2/containers/admin~13972/statistics/jvm'

Example Response:

{
  "timestamp": 1521376850952,
  "uptime": 11914185,
  "memoryHeapCommittedInBytes": 523763712,
  "memoryHeapUsedInBytes": 75691760,
  "memoryNonHeapCommittedInBytes": 63700992,
  "memoryNonHeapUsedInBytes": 62009552,
  "threadCount": 118,
  "peakThreadCount": 146,
  "gcCount": 21,
  "gcTime": 290
}

Options:

Option Description Required
containerId Provide the ID of the container for which you want to see the JVM statistics. Yes

List transport statistics for a specific container

Path

GET /containers{id}/statistcis/transport

Description:

This option lists the tranport statistics, such as completed tasks and thread information, for the specified container.

Example Request:

curl -X GET --header 'Accept: application/json' 'http://localhost:8090/v2/containers/admin~13972/statistics/transport'

Example Response:

{
  "timestamp": 1521376929557,
  "completedTaskCount": 19294,
  "completedTaskPerSecond": 0.000012682590109740723,
  "activeThreadsCount": 0,
  "activeThreadsPerc": 0,
  "queueSize": 0
}

Options:

Option Description Required
containerId Provide the ID of the container for which you want to see the transport statistics. Yes

The Hosts view provides general overview of the containers that are running in the GigaSpaces environment.

For a description of the other information displayed in the Hosts view, see the Viewing Host Information topic.

Item Description
Grid Service Container
Name Name of the GSC.
CPU Indicator of how much CPU is being used, in %.
Used Heap (MB) Indicator of how much heap memory the GSC is utilizing, in both MB and %.
Threads How many threads the GSC has open.
Processing Units Processing Units and number of Processing Unit instances being hosted by the GSC.
Primaries & Backups Processing Unit instances being hosted by the GSC, according to primary and backup status.
Grid Service Manager/Lookup Service
Name Name of the container.
CPU Indicator of how much CPU is being used, in %.
Used Heap (MB) Indicator of how much heap memory the container is utilizing, in both MB and %.

Refer to the Admin API topics in the Developer Guide.
